5 Ton BMH Single Girder Semi Gantry Crane Application Warehouse Factory
Product Description
Semi-gantry Crane has a special design structure to suit various crane work situation. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track. Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, also can expand crane effective work space in some limited workshops. The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.
Drawing and Specification
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height-H2 (m) | Duty Class |
| 1 | 5~35 | 5~25 | A3 or A5 |
| 3 | 5~35 | 5~25 | A3 or A5 |
| 5 | 5~35 | 5~25 | A3 or A5 |
| 10 | 5~35 | 5~25 | A3 or A5 |
| 12.5 | 5~35 | 5~25 | A3 or A5 |
| 16 | 5~35 | 5~25 | A3 or A5 |
| 20 | 5~35 | 5~25 | A3 or A5 |
| 32 | 5~35 | 5~25 | A3 or A5 |
| Customizable | Customizable | Customizable | Customizable |
Application
• Workshop, Concrete plant, all factories etc
• For assembly, loading, unloading area etc
• Run on the rail to cover whole area
Advantages
• Lightweight body, Low purchase cost
• Low power consumption &operating cost
• With hydraulic clamp to prevent sliding
• With anti-tipping to prevent typhoons
Working Condition
• Working temperature: -25-50°C
• Power supply:AC type 380V/3Ph/50Hz or according to your requirements
• Working class:A3~A5 .
If the working condition is very hard,please notice us in advance,we will redesign the unit according to your condition and request.
Safety Features
• Overload protection:If the material is over the capacity,the crane will give a sharp warning for protection itself.
• Emergancy brake:If the operation staff encounter some emergency situation,we could start the emergency brake system to protection the related treasure.
• Controll Method: Room contrll or remote controll to avoid any injure to the operation staff
• Main lifting motor with thermal protection and currency protection.
Emergancy swith can stop all movement when any dangerous happened.
Feature
• High quality and competitive price
We’ll offer the detailed and precise drawing for every crane,to make sure the crane could achieve its highest effective,high safty factor,easy install and movement.
Package and Delivery
FAQ
1.Which industries do you service?
We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.
2.Which areas do you service?
We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.
3.Which cranes are most suitable for outdoors?
The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.
4.What international certificate does your crane passed?
Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.
5.What is the best crane for my needs?
We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
Product Tags:
|
|

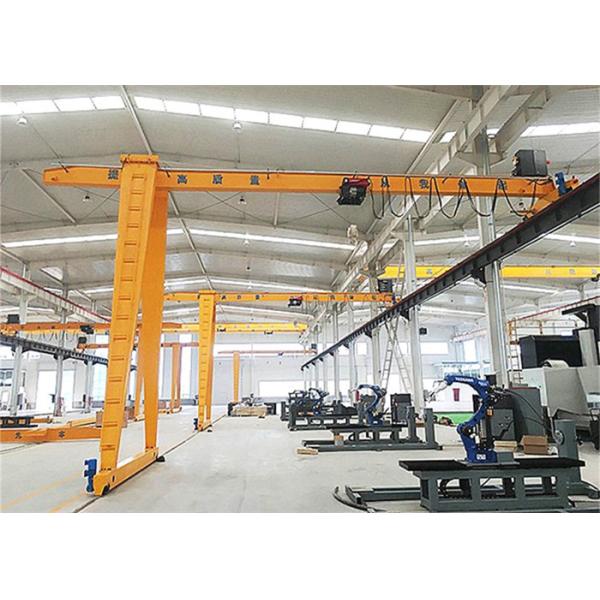

5 Ton BMH Single Girder Semi Gantry Cranes For Warehouse Factory Images
|
