20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

Xinxiang Magicart Cranes Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

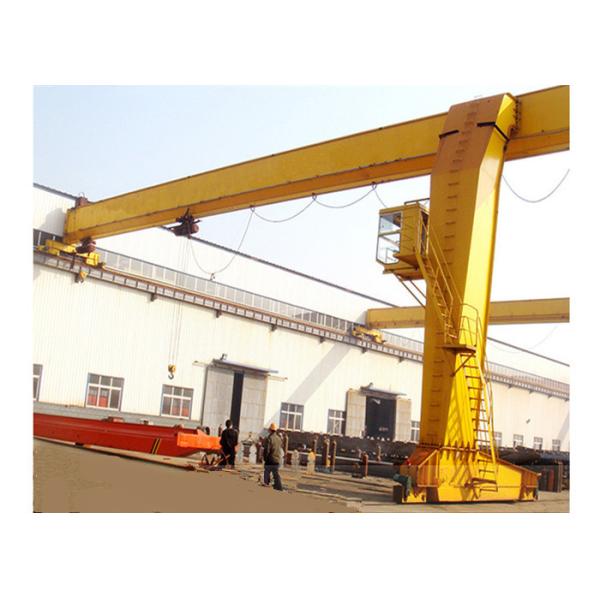

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

  • 1
  • 2

Brand Name : Magicart

Model Number : BMH

Certification : CE, ISO, SGS, GOST, BV

Place of Origin : Henan, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : According to customer needs

Delivery Time : 30000 sets per year

Packaging Details : High quality plywood crate and plastic woven cloth

Capacity : 1t~32t, customized

Span : 5m~35m, customized

Lifting height : 5m~35m, customized

Class : European design A5, option A3

Color : Customer Requirements

Main electrical parts : Schneider and Siemens

Lifting mechanism : Electric Hoist or trolley

Application : Workshop, warehouse, storage, seaport

Control method : Remote or pendent control on ground

After-sales service Provided : Video technical support, Field installation, commissioning and training

Contact Now

Rail-Mounted Semi Gantry Crane 20tons For Workshop Light Crane

Product Description

A Semi-Gantry Crane is our single-leg crane, which is ideal for providing material handling solutions in facilities where space is an issue due to machinery, narrow spacing or confined spaces. The advantage of a Semi-Gantry Crane is that it can be installed below overhead travelling cranes that already exist. This gives an exceptionally extensive cover of the floor area. BMH crane moves over the floor on wheels, while the other end runs overhead on a wall-mounted I-beam using one of two end truck designs:

Top-Running End Truck: The end of the gantry's I-beam mounts onto an end truck that travels on the top side of an overhead runway beam.

Under-Running End Truck: The end of the gantry's I-beam mounts onto an end truck that travels on the bottom flange of an overhead runway beam (max. span of 20 feet).

Drawing and Specification

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

lifting capacity (t) 2 3 5 10
span (m) 10 12 16 20
lifting height (m) 6 6/9 6/9 9
travelling mechanism travelling speed (m/min) remote control 20
cabin 20
lifting mechanism lifting speed (m/min) 0.7/7 0.7/7 0.7/7 0.6/6
travelling speed (m/min) 20 20 20 20
working duty A5

Application

• Workshop, Concrete plant, all factories etc

• For assembly, loading, unloading area etc

• Run on the rail to cover whole area

Working Condition

• Working temperature: -25-50°C

• Power supply:AC type 380V/3Ph/50Hz or according to your requirements

• Working class:A3~A5 .

If the working condition is very hard,please notice us in advance,we will redesign the unit according to your condition and request.

Safety Features

Overload protection:If the material is over the capacity,the crane will give a sharp warning for protection itself.

Emergancy brake:If the operation staff encounter some emergency situation,we could start the emergency brake system to protection the related treasure.

Controll Method: Room contrll or remote controll to avoid any injure to the operation staff

Main lifting motor with thermal protection and currency protection.

Emergancy swith can stop all movement when any dangerous happened.

Advantages

• Lightweight body, Low purchase cost

• Low power consumption &operating cost

• With hydraulic clamp to prevent sliding

• With anti-tipping to prevent typhoons

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

Package and Delivery

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

Installation and Commissioning

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

20T Concrete Plant Rail Mounted Semi Gantry Cranes 5m-35m Span

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period

4. Q: Do you have engineer oversea installation service?
A: Yes; We have;

5. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

6. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

7. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
